Steel Roller Conveyor > M Series
R-6038SB
Product Description
Product Description
Diameter Φ60, steel thickness at 3.8 with shaft diameter Φ20 for heavy loads.
Purpose
For heavy-duty conveying.
Product Features
1. We have improved the quality by changing the roller from the conventional R-6038 with machined bearing to a standard bearing.
2. Roller diameter φ60.5, thickness t3.8, minimum roller pitch P75.
3. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).
Diameter Φ60, steel thickness at 3.8 with shaft diameter Φ20 for heavy loads.
Purpose
For heavy-duty conveying.
Product Features
1. We have improved the quality by changing the roller from the conventional R-6038 with machined bearing to a standard bearing.
2. Roller diameter φ60.5, thickness t3.8, minimum roller pitch P75.
3. Nominal roller width is standard in 50mm increments from 100W to 1,000W. Custom sizes are also available.
4. Standard type: [ 90 height frame.
Note 1: For connecting plates (connecting components between conveyors), please provide separate instructions as needed.
Note 2: If the roller pitch (P) cannot be precisely divided, it will be an equivalent pitch (P).

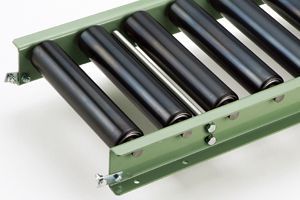

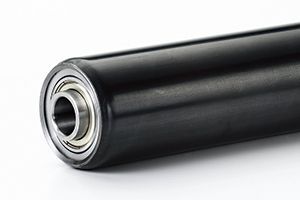

Product Images

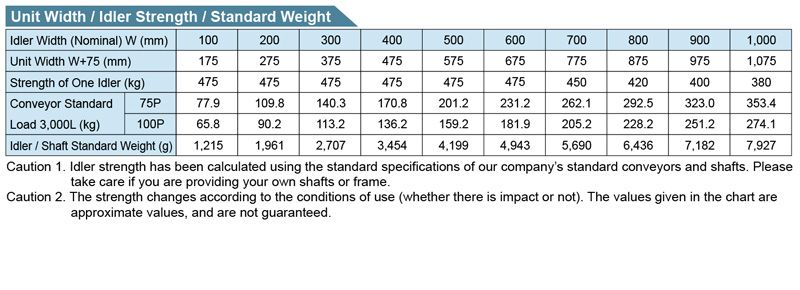

Joint Platings are Optional.
MODEL SELECTION
RTypes of Rollers
R: Steel Roller |
- |
60Roller outer diameter (Φ) 60: 60.5
|
- |
38Roller Pipe Thickness (t) 38: t3.8
|
- |
SBBearing Type SB:
Standard Bearing |
- |
#Frame Length
|
Product Specifications

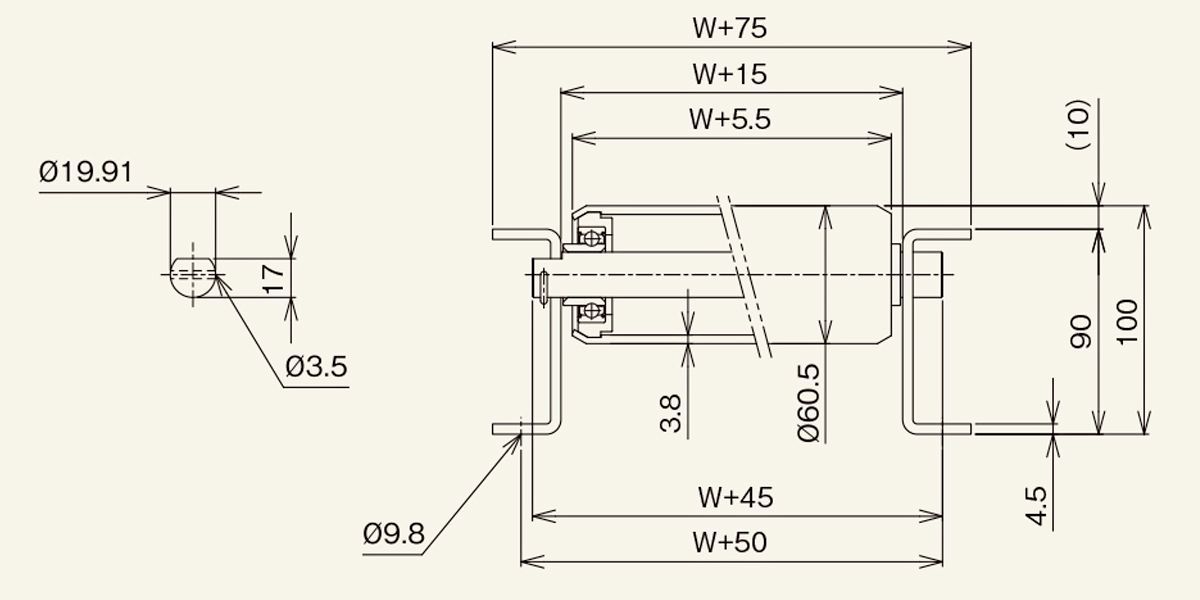

■Technical Drawings
■Technical Details
| Roller Type: | R-6038SB |
|---|---|
| Roller Dimensions: Outer Diameter (φ) | 60.5 |
| Roller Dimensions: Thickness (t) | 3.8 |
| Roller Dimensions: Shaft Hole Diameter (φ) | 20.0 |
| Standard Roller Width (Nominal) W: | 100~1000 |
| Standard Roller Full Length Boss to Boss (BB): | W+13 |
| Minimum Roller Width Available (W): | 100 |
| Maximum Roller Width Available (W): | 1000 |
| Roller Width Free Size: | Available |
| Roller Material: | SGP50A |
| Roller Surface Treatment: | None / Original Condition |
| Bearing Specifications: | Standard Bearing |
| Conveyor Specifications | ー |
| Frame Specifications Height x Width x Thickness: | [ 90 x 30 x 4.5 |
| Frame Material: | Steel |
| Frame Surface Treatment: | Baked Paint |
| Standard Product Range, 1000L: | Available |
| Standard Product Range, 1500L: | Available |
| Standard Product Range, 2000L: | Available |
| Standard Product Range, 3000L: | Available |
| Standard Product Range, Curve Inner R900: | Available |
| Standard Roller Pitch P: | 75・100・150・200 |
| Machine Height (Up to Roller Surface) H: | 100.0 |
| Standard Shaft Specifications | ー |
| Shaft Diameter (φ) x Thickness (t) Nominal (Actual): | 20 (19.91) |
| Shaft Length (mm): | W+45 |
| Shape: | Cyclindrical Rod |
| Machining: | Round/ Half-Moon Shape /Horizontal Pin Hole |
| Material: | SS400 |
| Unit (mm): | Not Available |
| Unit: mm | ー |
■Others
Data Download
R-6038SB
Contact Us Quotation Request ▶
